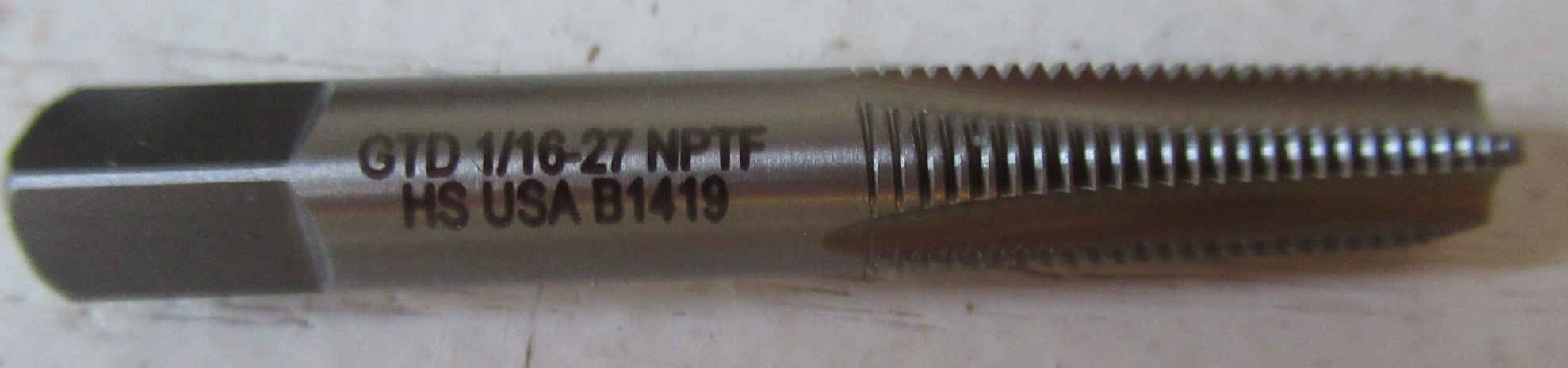

Product Detail 23: Widia Tap, 1/16-27 NPTF 4F Taper Pipe Tap (16203).
2020-06-12
Objective:
Manafactured by Wadia:
2020-06-08 Retailer: McMaster; Widia Tap 1/16-27 NPTF 4F Taper Pipe Tap; Cost $21.72
 |
|---|
 |
| Pipe Tap Size (in) | NPT & NPTF | |
| Pitch (TPI) | Drill Size (in) | |
| 1/16 | 27 | .242(C) |
| 1/8 | 27 | .333 (Q) |
| 1/4 | 18 | 7/16 |
| 3/8 | 18 | 9/16 |
| 1/2 | 14 | 45/64 |
| 3/4 | 14 | 29/32 |
| 1 | 11.5 | 1-9/64 |
| 1-1/4 | 11.5 | 1-31/64 |
| 1-1/2 | 11.5 | 1-23/32 |
| 2 | 11.5 | 2-7/32 |
